H20 Beam Decking

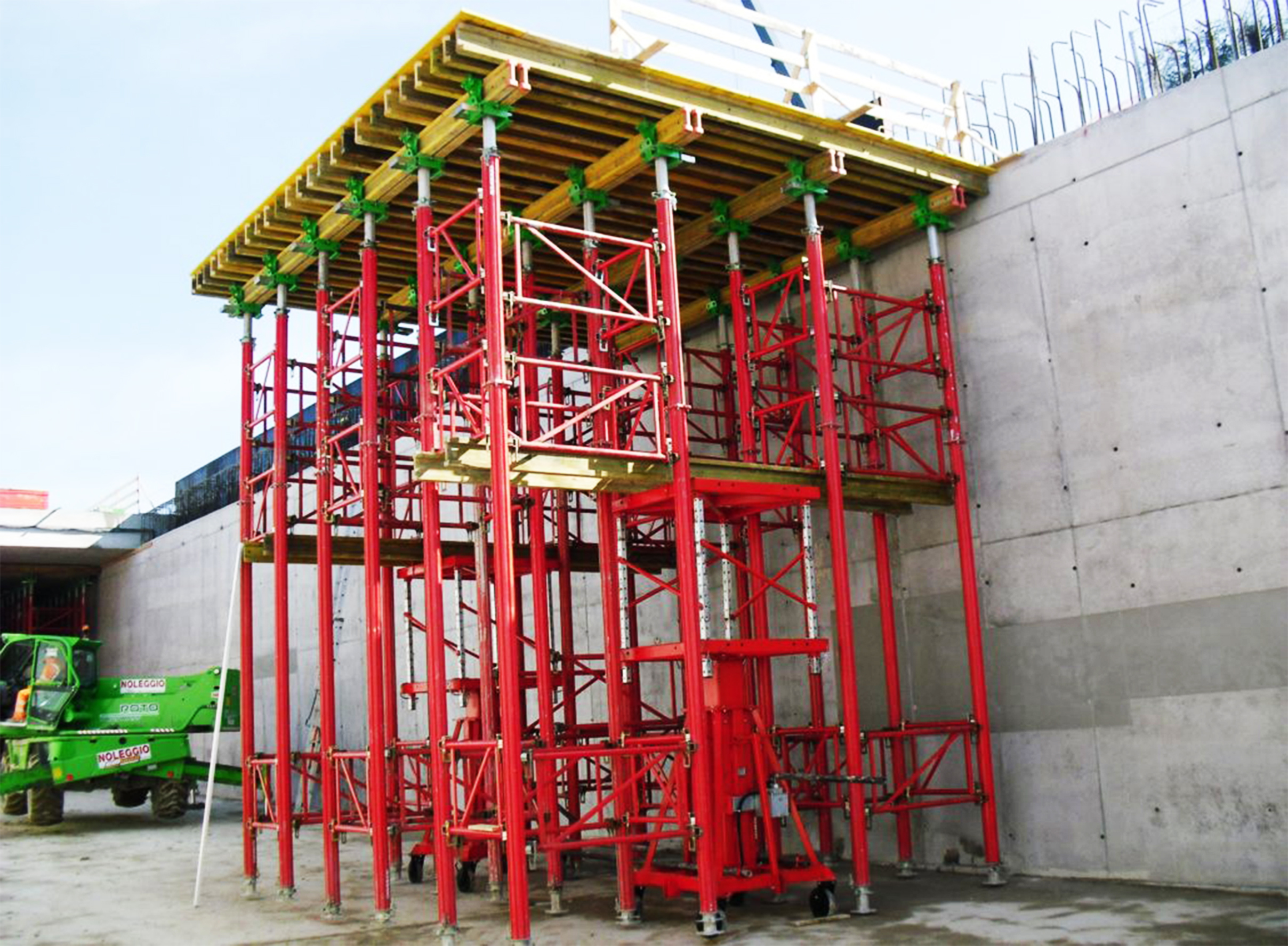

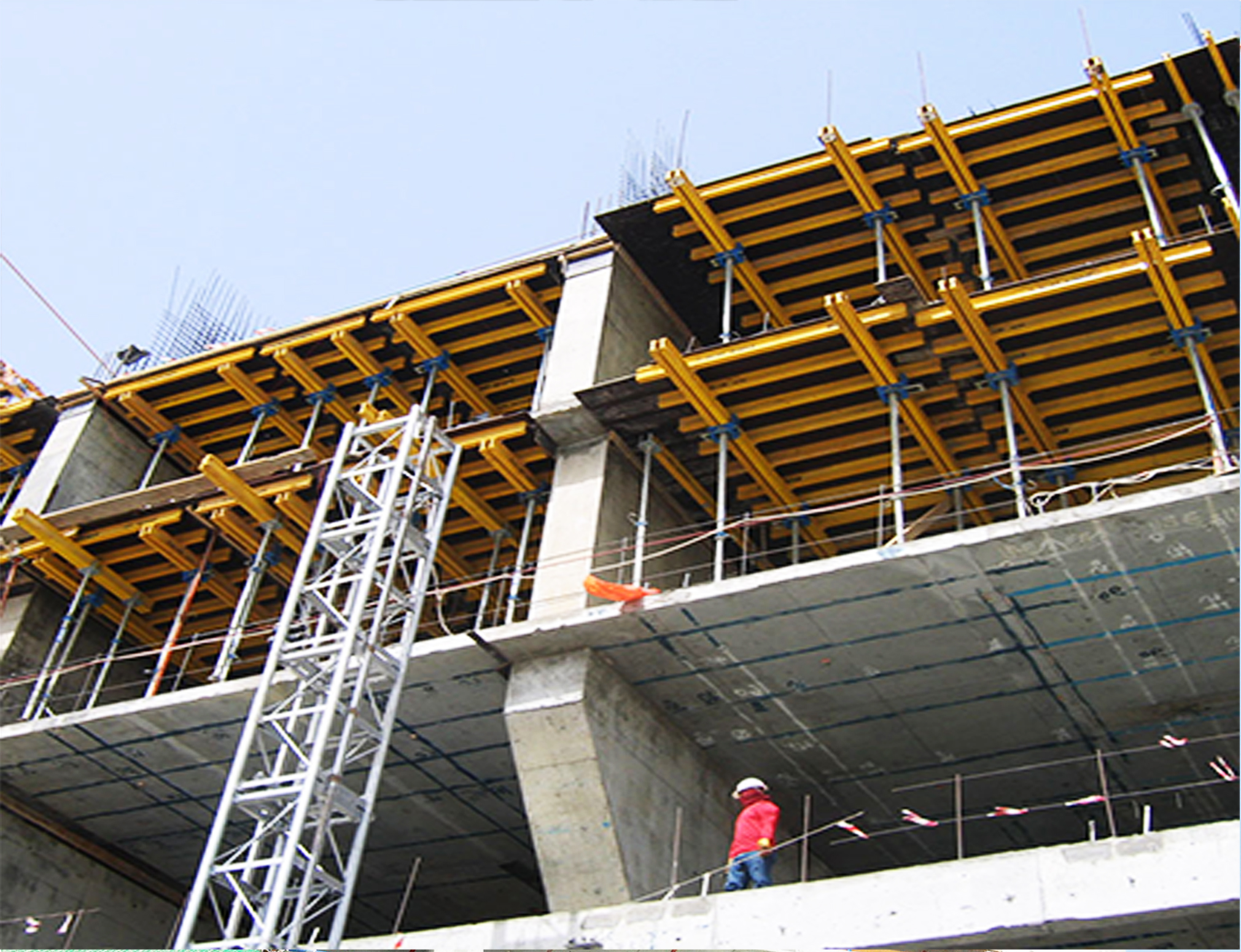

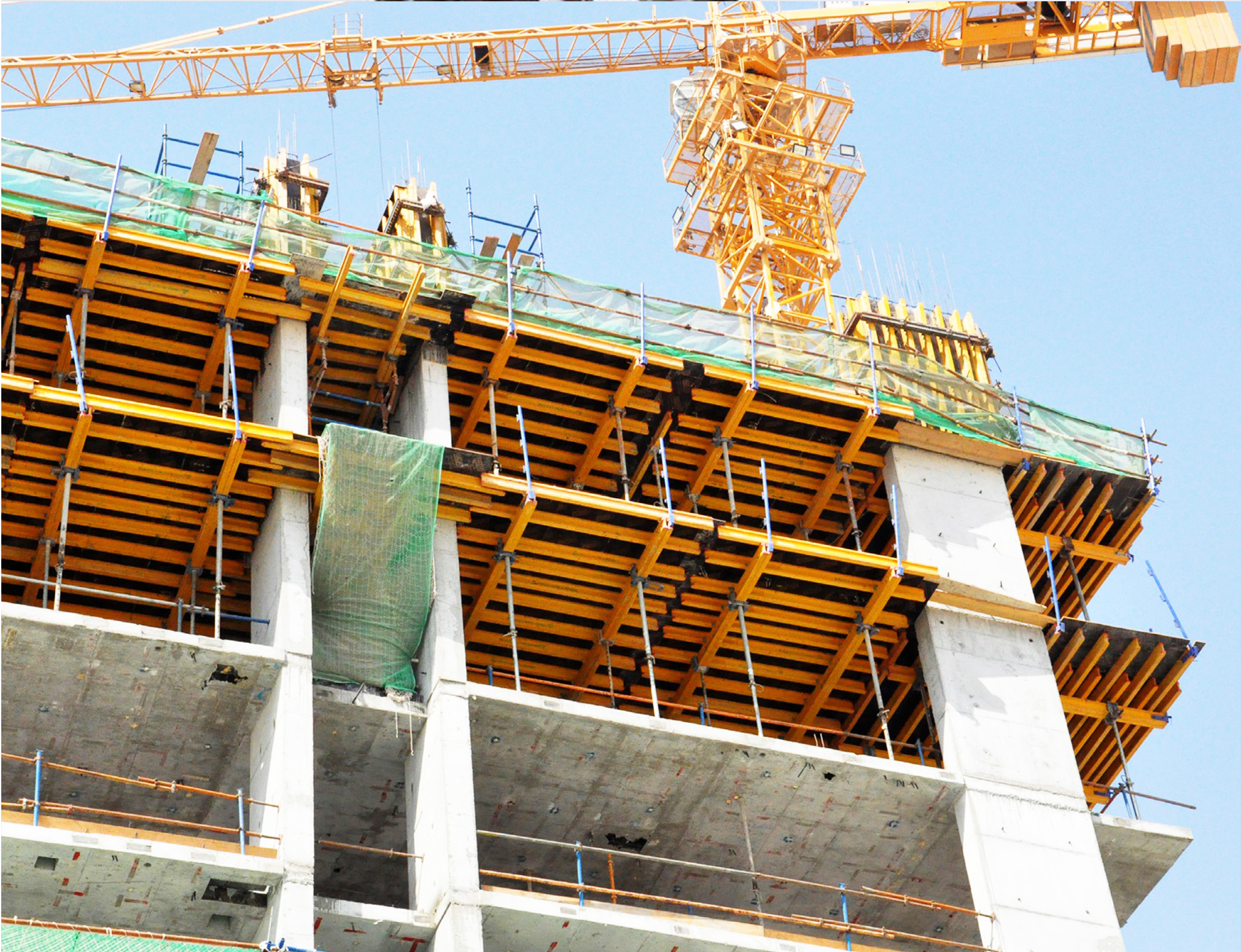

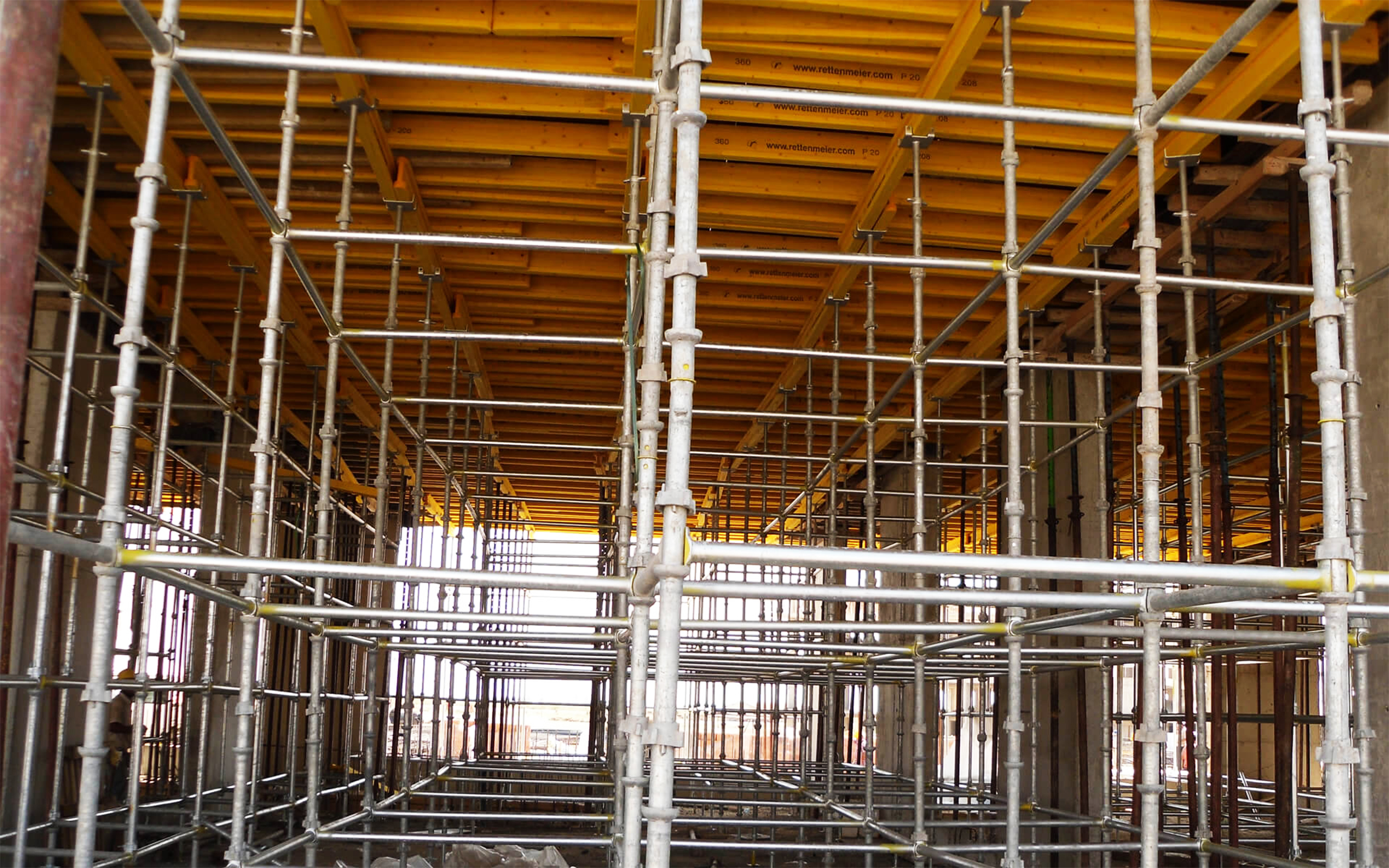

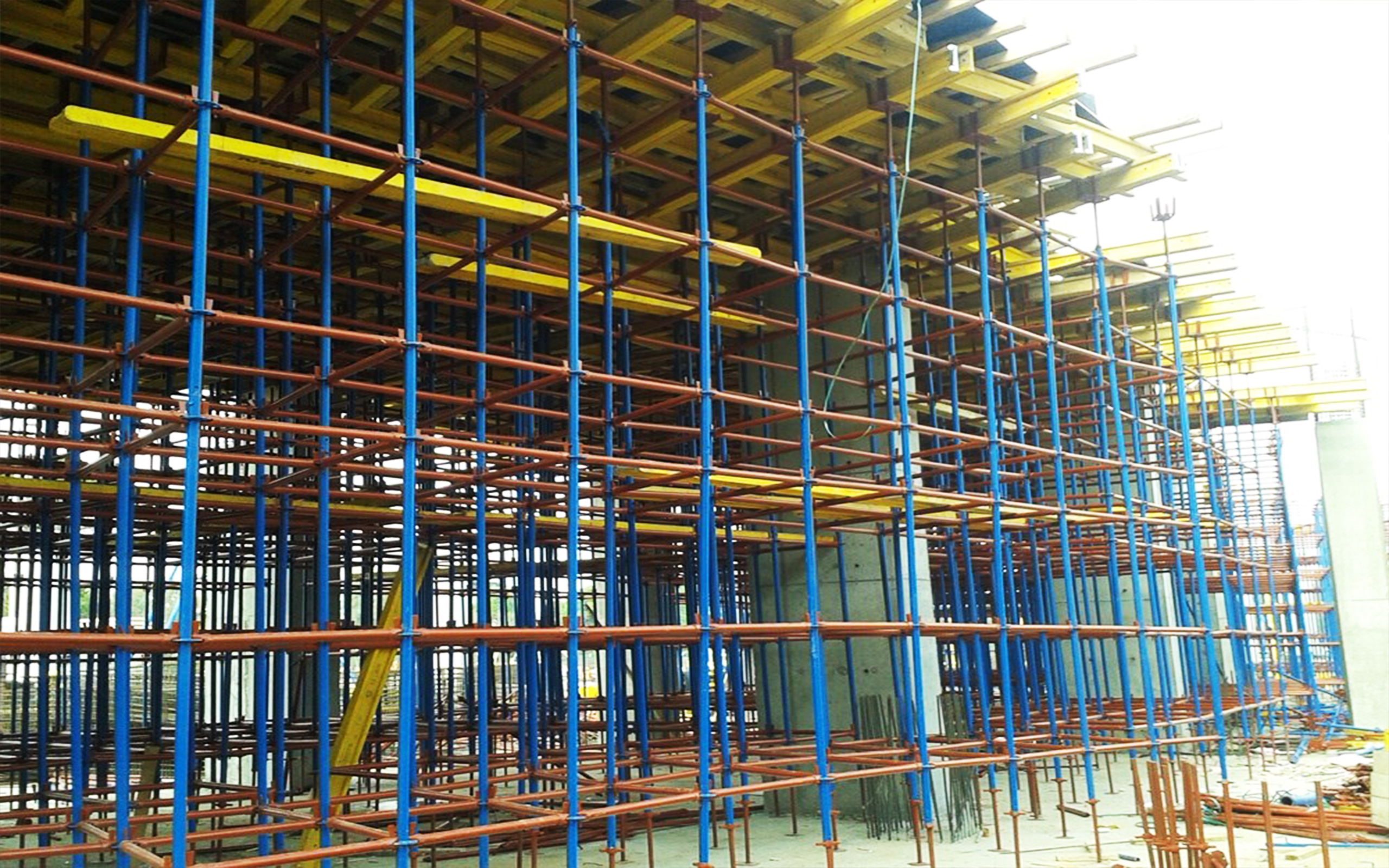

The Development implementation of Cuplock formwork with H20 timber beam makes it possible to create slopping slab up to a maximum slop of 8%. All the couplock H20 timber Beam developed accessories can be applied both to the wooden system and aluminium beam system. The assembly is not always quick because of it standard allowing to each a requested slope in a standard way.

• 1. BASE JACK

  The Adjustable Base Jack is used at the bottom of cuplock formwork to provide an additional maximum adjustment of 500mm Permissible Axial load 57KN.

• 2. CUPLOCK STANDARDS (SPIGOT CONNECTOR)

  The Cuplock standards are available to suit any propping or access application economically, the standards can be used for support or access as required.

  SPIGOT CONNECTOR

  Standard are connected end-to-end by an internal spigot. A bolt is used to connect to the lower standard.
  Standards		Spigot
  L (m)	W (kg)	L (m)	WT (kg)
  3.0	15.2	1.3	6.8
  2.5	12.8	1.8	9.0
  2.3	11.8
  2.0	10.0
  1.5	7.5
  1.3	7.0
  1.0	5.1

• 3. LEDGERS

  Ledgers are available in a range of standard sizes or can be made to special length if required.
  L (m)	W (kg)
  2.5	9.3
  1.8	6.8
  1.6	6.1
  1.3	5.0
  1.2	4.7
  1.0	4.0
  0.9	3.6
  0.6	2.5

• 4. FORKHEAD (U-Head)

  For traditional timber, steel or aluminium beam support. U-head is structured to accommodate single and double timbers of 75mm nominal width. It is used with a universal jack to give height adjustable.

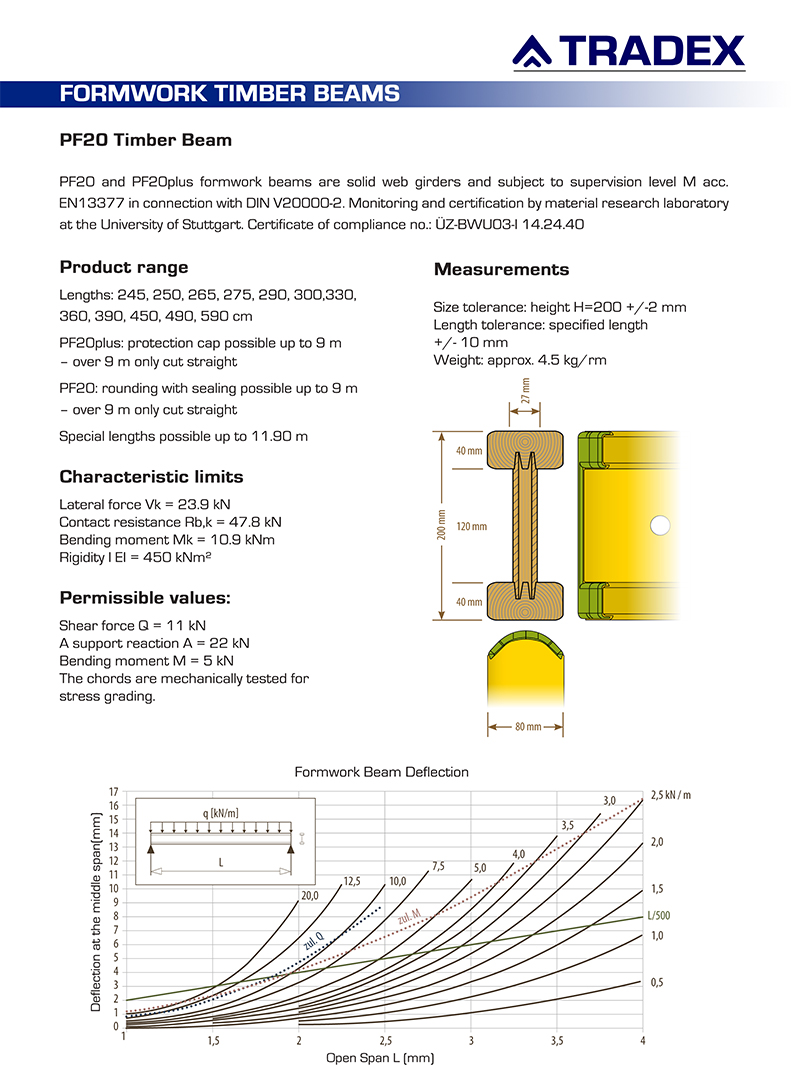

• Primary & Secondary Layer

  H20 Aluminium Beam
